Power Receptacle 828

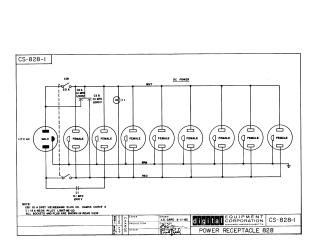

This document is a technical schematic for the Digital Equipment Corporation Power Receptacle 828. It depicts an electrical circuit designed for a 117V AC input that connects to a series of eight female output sockets.

Key technical details include:

• Circuit Protection: A 20A DPST Heinemann Electric Co. circuit breaker (CB1).
• Power Indicators: A neon pilot light (I1).
• Filtering: Several 0.1 MFD 1000V capacitors (C1, C2 A, C2 B) are included for filtering/suppression.
• Configuration: The diagram illustrates a standard AC input plug connected to a bus supplying power to the receptacle string, with ground (GRN) and return (RED) lines.
• Note: The drawing explicitly states that all sockets and the plug are shown from the rear view.
