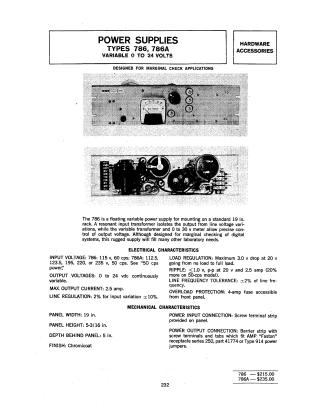

Power Supplies Types 786, 786a

This document provides a technical overview and specifications for the Type 786 and 786A variable power supplies. Designed for rack mounting and marginal check applications, these units offer a continuously variable output of 0 to 24 VDC with a maximum output current of 2.5 amps. The devices feature a resonant input transformer for line voltage isolation and a built-in meter for monitoring. The document outlines key electrical characteristics, including line and load regulation, ripple, and overload protection, alongside mechanical details such as dimensions and connectivity options (screw terminals and AMP "Faston" receptacles). Pricing information is listed as $215 for the 786 and $235 for the 786A.
