Socket Adapter Type 4912

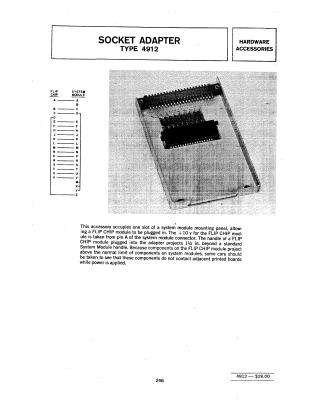

This document describes the Type 4912 Socket Adapter, a hardware accessory designed to occupy a single slot in a system module mounting panel, allowing a Flip Chip module to be connected. Key operational details include:

• Power: The +10V power supply for the Flip Chip module is sourced from pin A of the system module connector.
• Physical profile: When installed, the handle of the Flip Chip module extends 1.5 inches further than a standard system module.
• Safety precaution: Because components on the Flip Chip module extend beyond the standard clearance height, users must ensure these components do not make contact with adjacent circuit boards while the device is powered.
