Cabinets

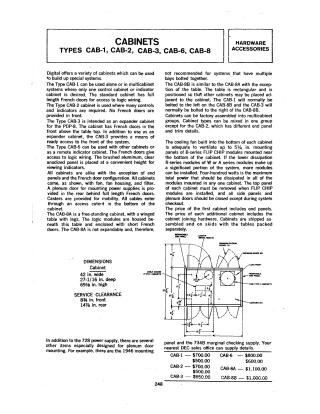

This document provides an overview of various Digital equipment cabinets designed for housing system logic and indicators. Each cabinet model serves specific configuration needs, such as the CAB-1 for standard or multicabinet systems, the CAB-2 for high-density controls, the CAB-3 as an expander for the PDP-8, and the CAB-8 series which feature integrated work tables. All cabinets include cooling fans, filters, mobility casters, and rear plenum doors for power supply mounting. The document also outlines thermal limitations (a 400-watt maximum dissipation per cabinet), physical dimensions, and general assembly information for multicabinet groupings.
