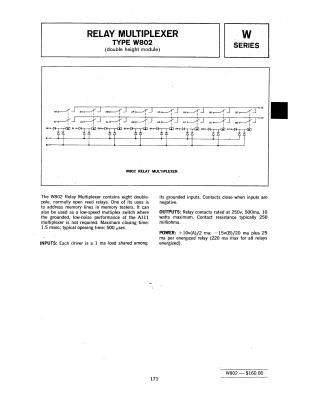

Relay Multiplexer Type W802

Summary The W802 Relay Multiplexer is a double-height module featuring eight double-pole, normally open reed relays. It is designed primarily for addressing memory lines in memory testers and serves as a low-speed multiplex switch. The device features a maximum closing time of 1.5 milliseconds and a typical opening time of 500 microseconds. Contacts close when inputs are negative, and the unit is rated for 250V, 500mA, and 10 watts.
