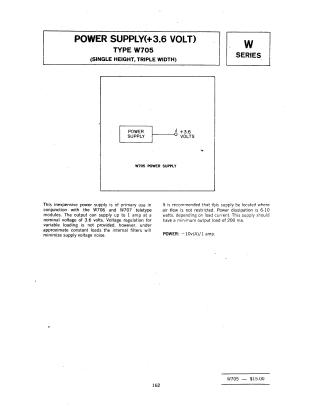

Power Supply (+3.6 Volt) Type W705

Summary: The W705 is a single-height, triple-width power supply module designed primarily for use with W706 and W707 teletype modules. It provides a nominal 3.6V output at up to 1 amp. The unit does not include voltage regulation for variable loading, so it is best suited for constant load applications where internal filtering can minimize voltage noise. The module dissipates between 6 and 10 watts of power, requires a minimum output load of 200 mA, and should be installed in an area with adequate airflow.
