Dec to Ibm N Line Converter

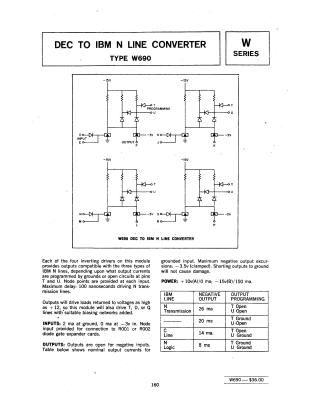

This document serves as a technical specification sheet for the Digital Equipment Corporation (DEC) W690 module. The module acts as an inverting driver designed to convert signals to be compatible with three different types of IBM N lines. It features four individual drivers, each with programmable output currents determined by the configuration of pins T and U. The document outlines the device's electrical characteristics, including input/output requirements, power consumption, a maximum signal delay of 100 nanoseconds, and the ability to drive various transmission, C, and logic lines. It also notes that the device is protected against short circuits to ground.
