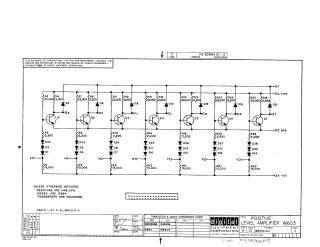

Positive Level Amplifier Type W603

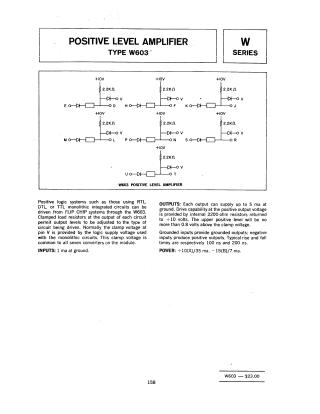

Summary The W603 Positive Level Amplifier is a module designed to interface FLIP CHIP systems with positive logic systems, such as RTL, DTL, or TTL monolithic integrated circuits. The module features seven converters, each equipped with clamped load resistors that allow output levels to be adjusted based on the specific requirements of the connected circuits.

Key technical specifications include:

• Inputs: Requires 1 mA at ground.
• Outputs: Supports up to 5 mA at ground. The upper positive output level is controlled by a clamp voltage (typically provided at pin V) and will not exceed 0.8 volts above that voltage.
• Performance: Grounded inputs result in grounded outputs, while negative inputs produce positive outputs. Rise and fall times are 100 ns and 200 ns, respectively.
• Power Requirements: +10V (at 35 mA) and -15V (at 7 mA).
