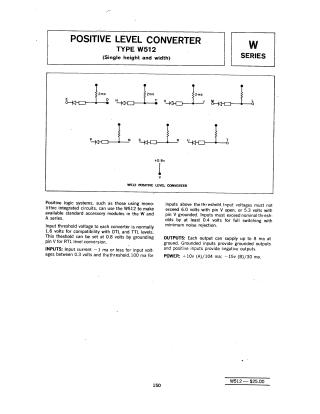

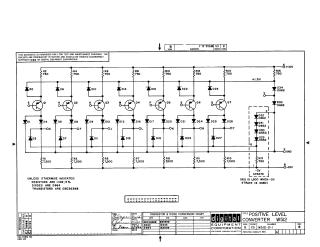

Positive Level Converter Type W512

This document provides technical specifications and operational details for the W512 Positive Level Converter module, part of the W Series. Designed for compatibility with positive logic systems (such as monolithic integrated circuits), the module facilitates level conversion between different logic standards.

Key features include:

• Threshold Flexibility: The input threshold is typically 1.6V (compatible with DTL/TTL), but can be adjusted to 0.8V for RTL compatibility by grounding pin V.
• Input Requirements: Specifies current ratings, voltage limits (max 6.0V or 5.3V depending on pin V configuration), and switching thresholds.
• Output Capabilities: Capable of supplying up to 8 mA at ground, with inverse output logic based on the input signal.
• Power Requirements: Operates on +10V at 104 mA and -15V at 30 mA.
