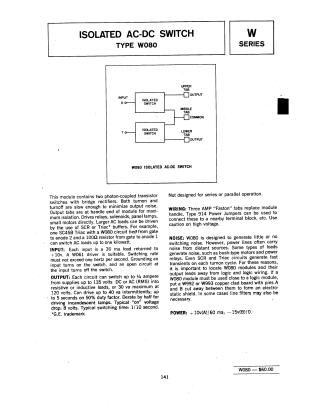

Isolated Ac-Dc Switch Type W080

Summary The W080 is an isolated AC-DC switch module containing two photon-coupled transistor switches designed to minimize output noise. It is used to drive relays, solenoids, panel lamps, and small motors, and can be used with SCR or Triac buffers to manage higher AC loads. The module operates with a maximum switching rate of 1 Hz and is controlled by grounding the input. Due to its sensitivity to electrical interference, the module should be shielded or placed away from sensitive logic wiring, and it is not intended for series or parallel operation.
