Connector W023

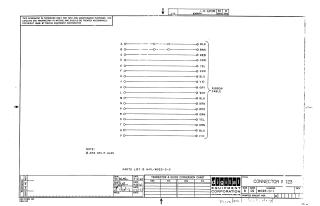

This document is a technical schematic for the Digital Equipment Corporation "Connector W023," dated 1968. It illustrates the wiring layout for a ribbon cable connecting 22 points (labeled A through V) to a series of color-coded wire identifiers (Black, Brown, Red, Orange, Yellow, Green, Blue, Violet, Gray, White). The document includes a note that all connection points are split lugs and references an associated parts list (A-PL-W023-0-0).
