Indicator Cable Connector W020

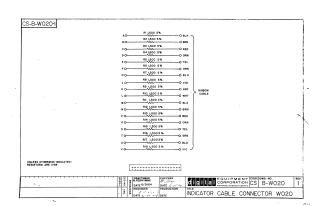

This document is a technical schematic for the "Indicator Cable Connector W020," produced by Digital Equipment Corporation in June 1964. The diagram details the wiring configuration for a ribbon cable, showing 18 lines (labeled A through V, excluding specific letters) each connected to a 1,500-ohm, 5% tolerance resistor. The document notes that, unless otherwise specified, all resistors used are 1/4 watt.
