Indicator Cable Connector W012

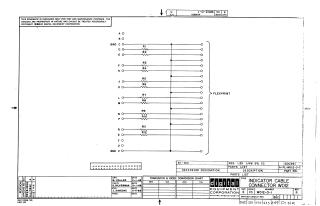

Summary: This document is a 1966 schematic diagram provided by the Digital Equipment Corporation for the "Indicator Cable Connector W012." The diagram details a flexprint circuit configuration consisting of twelve input/output points (A through V, excluding specific letters) connected through a series of twelve 1.5K, 1/4W, 5% resistors (R1 through R12) to corresponding pins. The document includes a parts list identifying the resistor specifications and notes that the schematic is intended for test and maintenance purposes only.
