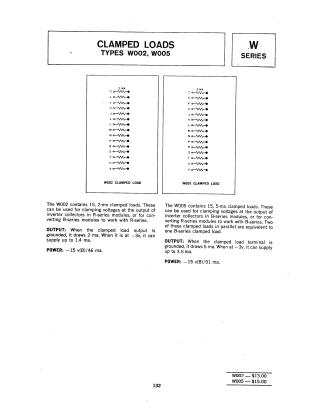

Clamped Loads Types W002, W005 Series

Summary This document provides specifications for the W002 and W005 series clamped load modules, which contain 15 individual clamped loads each.

• W002 Clamped Load: Designed for use with R-series modules or to convert B-series modules for use with R-series. It draws 2 mA when grounded and supplies up to 1.4 mA at -3v. It requires -15v power at 46 mA.

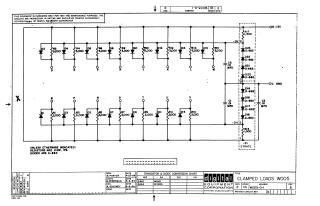

• W005 Clamped Load: Designed for use with B-series modules or to convert R-series modules for use with B-series. It draws 5 mA when grounded and supplies up to 3.5 mA at -3v. It requires -15v power at 91 mA. Parallel use of two W005 loads is equivalent to a single B-series clamped load.
