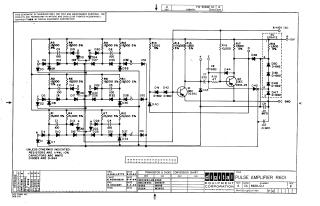

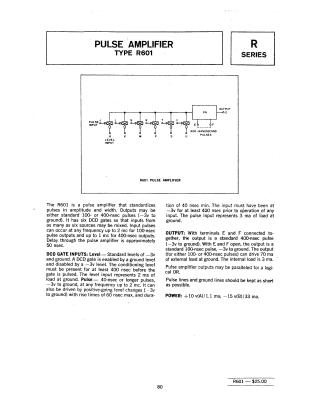

Pulse Amplifier Type R601

Summary The R601 is a pulse amplifier module designed to standardize pulse width and amplitude. It features six DCD gates that allow for the mixing of up to six input sources.

Key technical specifications include:

• Outputs: Supports either 100-nsec or 400-nsec pulses (-3v to ground). Output pulse width is determined by connecting or disconnecting terminals E and F.
• Performance: Can handle input frequencies up to 2 MHz for 100-nsec pulses and 1 MHz for 400-nsec pulses, with an internal delay of approximately 50 nsec.
• Compatibility: Outputs can be paralleled for logical OR operations and can drive an external load of 70 mA.
• Power Requirements: Requires +10v (1.1 mA) and -15v (33 mA).
