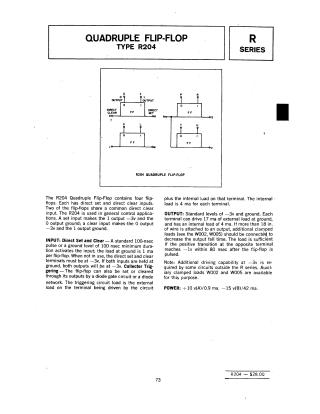

Quadruple Flip-Flop Type R204

Summary: The R204 is an "R Series" logic module containing four independent flip-flops. Each flip-flop features direct set and direct clear inputs. It is designed for general control applications, utilizing collector triggering to change output states. The module operates with standard output levels of -3v and ground, capable of driving 17 mA of external load. It requires power supplies of +10v (0.9 mA) and -15v (42 mA).
