Exclusive Or Type R131

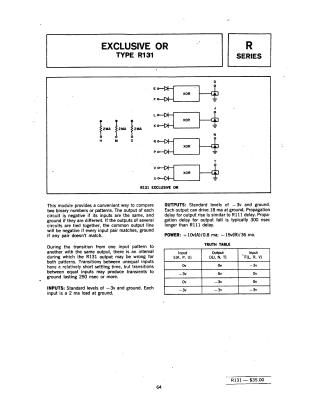

Summary: The R131 module is an "Exclusive OR" logic component from the R series, designed to compare two binary patterns or numbers. It features four independent XOR circuits, each outputting a negative voltage if the inputs match and ground if they are different. The module requires +10V and -15V power supplies and is compatible with standard -3V and ground input levels. It includes a truth table and provides technical specifications regarding output drive capacity (18 mA at ground) and signal propagation delays. The document also notes that brief transient spikes may occur during input transitions.
