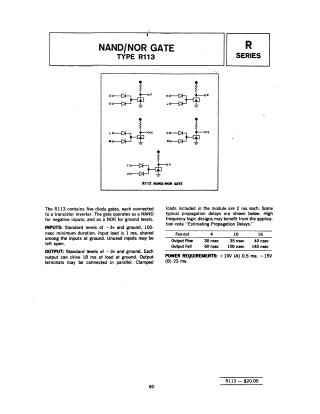

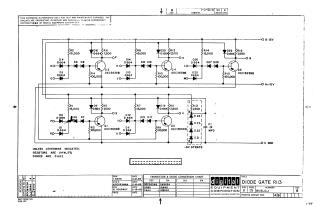

Nand/Nor Gate Type R113

Summary: This document provides technical specifications for the R113 NAND/NOR gate, a member of the R Series module family. The module features five diode gates connected to transistor inverters, capable of performing NAND operations for negative inputs and NOR operations for ground signals.

Key specifications include:

• Inputs: Operates at -3V and ground levels with a 100 nsec minimum duration. Each input load is 1 mA.
• Outputs: Supports -3V and ground levels with a drive capacity of 18 mA.
• Performance: Propagation delay times are provided for varying fan-out loads (4, 10, and 16).
• Power Requirements: Requires +10V at 0.5 mA and -15V at 23 mA.
