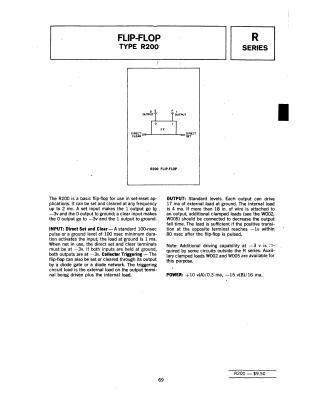

Flip-Flop Type R200

Summary: The R200 is a basic flip-flop module designed for set-reset applications, operating at frequencies up to 2 MHz. It features direct set and clear inputs that respond to 100-nsec pulses or ground levels. When inactive, the outputs sit at -3v; when the inputs are pulsed, the module transitions its output states accordingly. Each output can drive 17 mA of external load at ground. The unit requires +10V (0.3 mA) and -15V (16 mA) power supplies.
