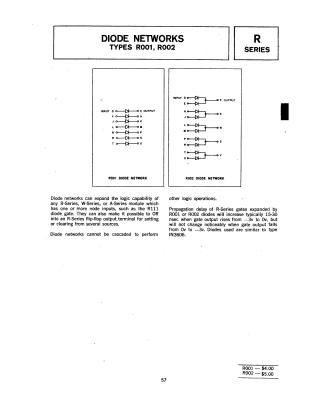

Diode Networks Types R001, R002

Summary: This document provides specifications for the R001 and R002 diode network modules. These components are designed to expand the logic capabilities of R-Series, W-Series, and A-Series modules (such as the R111 diode gate). They can facilitate OR functions for flip-flop inputs, enabling operations like setting or clearing from multiple sources. While these networks cannot be cascaded, they introduce a minor propagation delay of 15–30 nsec when gate outputs rise from -3v to 0v. The modules utilize 1N3606-type diodes.
