15 Terminators With Ind. Res.

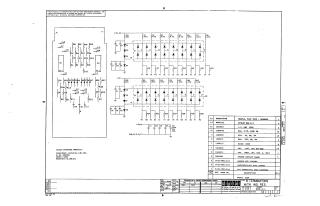

Summary This document is an engineering schematic for a 15-terminator circuit board (Digital Equipment Corporation, part number M931-0-1). The design utilizes a series of DEC 2501 integrated circuits and D662 diodes configured for signal termination, supported by a network of resistors and capacitors. The provided documentation includes a detailed circuit diagram, a complete parts list, and revision information.
