Flexprint Cable Connector

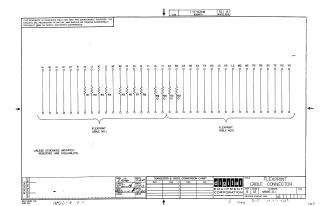

This document is a technical schematic for a Digital Equipment Corporation (DEC) Flexprint cable connector (part number M926-0-1), dated 1969. The diagram details the electrical pin-outs and configuration, showing twelve resistors (labeled R1 through R12) connected to various designated pins (A1 through V2). These pins are grouped into two distinct flexprint cable segments. The schematic notes that all resistors used in the design are 100 ohms with a 1/4 watt rating and a 10% tolerance.
