M915 Console Cable Connector

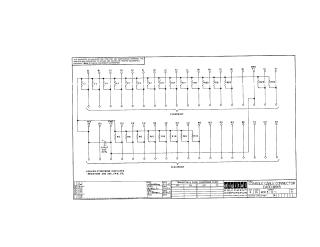

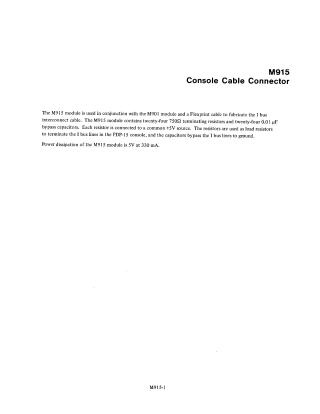

Summary The M915 module is designed to work with the M901 module and a Flexprint cable to create an I bus interconnect cable for the PDP-15 console. The module features twenty-four 750Ω terminating resistors connected to a +5V source to act as load resistors, as well as twenty-four 0.01 µF capacitors to bypass the I bus lines to ground. The module's power dissipation is 5V at 330 mA.
