Cable Terminator M906

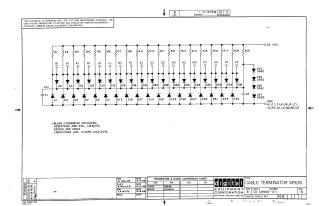

This document is a technical schematic for a Cable Terminator module (M906) designed by Digital Equipment Corporation in 1968. The circuit utilizes an array of 19 resistors and 36 diodes (D1–D36) to terminate signals, alongside a set of four additional diodes (D37–D40) used to regulate voltage. The schematic specifies the use of 220-ohm resistors, 0.01µF capacitors, and D664 diodes, with a transistor and diode conversion chart provided to cross-reference DEC components with EIA standards.
