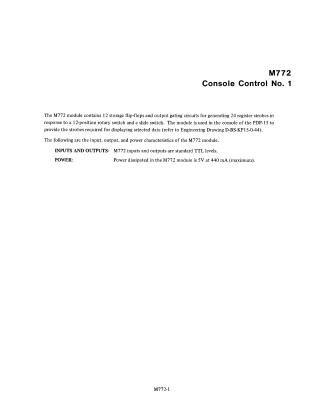

M772 Console Control No. 1

Summary: The M772 module is a hardware component designed for the PDP-15 console. It features 12 storage flip-flops and output gating circuits that generate 24 register strobes based on inputs from a 12-position rotary switch and a slide switch, which are used for displaying selected data. The module operates on standard TTL logic levels and consumes a maximum of 440 mA at 5V.
