Control for CR 8I M714

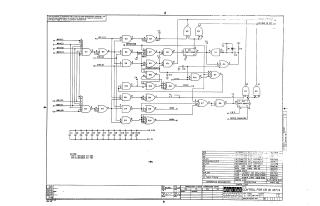

Summary: This document is a technical schematic diagram for the Digital Equipment Corporation "Control for CR 8I M714." The schematic details the logic circuit design, including the interconnection of various integrated circuits (ICs), such as NAND and NOR gates, used for processing I/O bus signals. Key functional labels include "Initialize," "Card Done," "Reader Ready," "Read," and "Data Ready." The document also provides a parts list referencing specific integrated circuits, resistors, diodes, and capacitors, along with standard electrical notes regarding power supply connections (Pin 7 for ground, Pin 14 for +5V).
