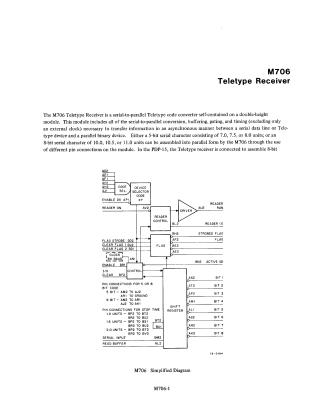

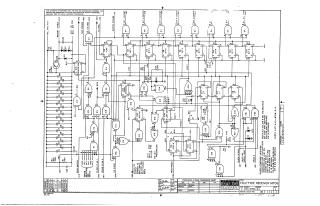

M706 Teletype Receiver

The M706 Teletype Receiver is a double-height module designed to convert serial teletype data into parallel binary form. It facilitates asynchronous data transfer between serial lines (or teletype devices) and parallel binary systems.

Key Features and Capabilities:

• Data Conversion: Supports the assembly of 5-bit or 8-bit serial characters of varying unit lengths (e.g., 7.0, 7.5, 8.0, 10.0, 10.5, or 11.0 units) through configurable pin connections.
• System Integration: Includes logic to reject spurious start bits (less than 1/2-unit long), provides device selector gating for use on a digital system's I/O bus, and supports half-duplex operation when paired with an M707 module.
• Interface Controls: Features multiple control signals, including I/O CLEAR, CODE SELECT, READ BUFFER, and FLAG outputs, which manage the timing and transfer of data from the internal shift register to the parallel outputs.

• Input/Output:

  • Serial Input: Uses a Schmitt trigger with hysteresis to filter noise and protect against voltage fluctuations.
  • Output: Provides parallel data outputs (Bits 1–8), a FLAG signal indicating data readiness, and READER RUN control for devices like DEC 33/35 ASR Teletypes.

• Operational Specs: Requires an external clock frequency at eight times the desired baud rate and operates at 5V with a maximum power dissipation of 400 mA.
