One Shot Delay M302

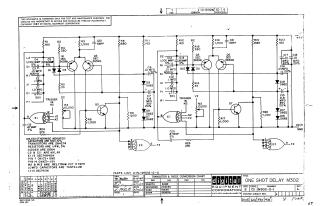

This document is a technical schematic diagram for the Digital Equipment Corporation (DEC) "One Shot Delay M302" circuit, dated 1967. The schematic details the electronic components and configuration required for this module, including transistors (2N4274), various capacitors (Mylar and Tantalum), resistors, and diodes. It also provides specific operational notes regarding voltage levels, component specifications, and integrated circuit pin assignments (such as DEC74H40N and DEC7413N). A conversion chart is included to cross-reference DEC-specific part numbers with industry-standard transistor and diode identifiers.
