16 Line to 1 Line Data Selector M1713

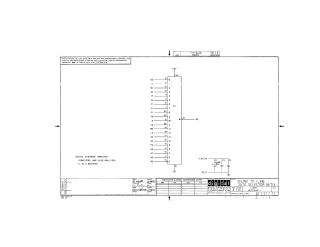

This document is a technical schematic for the Digital Equipment Corporation M1713 16-line to 1-line data selector. The circuit utilizes a DEC74150 integrated circuit to multiplex 16 data input lines (labeled S2, T2, M1, NI, PI, RI, SI, LI, FI, HI, JI, KI, M2, L2, K2, E2, F2, H2, J2, N2, R2) into a single output (W/P2). The schematic includes standard power supply filtering using a 6.8µF, 35V capacitor and notes that the document is intended strictly for test and maintenance purposes.
