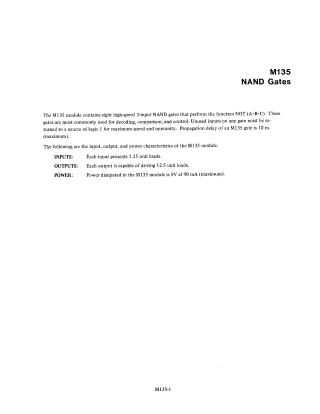

M135 Nand Gates

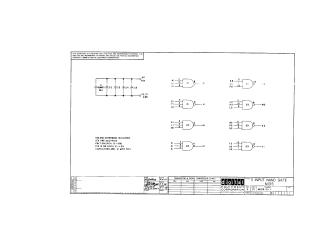

Summary: The M135 module is a high-speed logic component consisting of eight 3-input NAND gates, primarily used for decoding, comparison, and control tasks. Key technical specifications include a maximum propagation delay of 10 ns, an input load of 1.25 units per input, an output drive capability of 12.5 unit loads, and a maximum power dissipation of 5V at 90 mA. To ensure optimal speed and signal immunity, any unused gate inputs must be connected to a logic 1 source.
