3-8 Input Nand-Gates M119

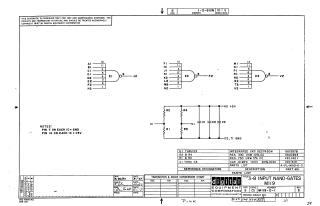

This document is a technical schematic for a Digital Equipment Corporation circuit board featuring three 8-input NAND gates (using DEC7430N integrated circuits). It includes the logical diagram, a power supply configuration for the ICs (pin 7 for GND and pin 14 for +5V), and a parts list detailing the necessary resistors and capacitors required for the circuit assembly. The document is dated 1967.
