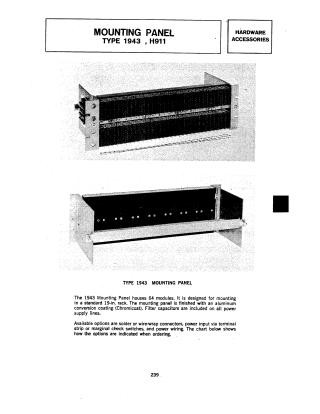

Mounting Panel Type 1943, H911

This document describes the specifications and ordering options for the Type 1943 and H911 Mounting Panels, both designed for standard 19-inch racks.

Type 1943 Mounting Panel:

• Houses 64 modules and includes filter capacitors on all power supply lines.
• Features an aluminum conversion coating (Chromicoat).
• Options include solder or wire-wrap connectors, terminal strip or marginal check switch power inputs, and pre-wired power configurations.
• Includes details for accessory components like the 1945-19 Hold Down Bar and 932 Bus Strip.

H911 Mounting Panel:

• Similar to the 1943 but designed for 64, 36-pin connectors.
• Available exclusively with wire-wrap pins.
• Shares identical mechanical dimensions with the 1943, excluding pin length (0.626" or 0.75").

The document also provides an ordering guide with examples and a comprehensive price list for the various configurations and accessories.
