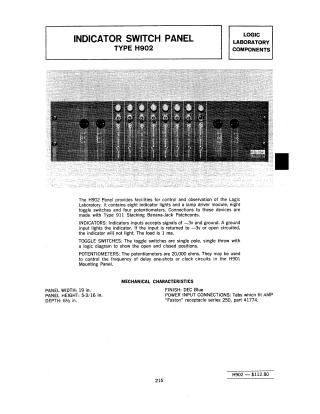

Indicator Switch Panel Type H902

Summary: The H902 Indicator Switch Panel is a component designed for the Logic Laboratory that allows for the control and observation of circuits. The unit features eight indicator lights, eight single-pole, single-throw toggle switches, and four 20,000-ohm potentiometers. It utilizes Type 911 Stacking Banana-Jack Patchcords for connections. The indicators function with -3v (off) and ground (on) signals, while the potentiometers are intended for frequency control of clock circuits or delay one-shots in the H901 Mounting Panel. The panel measures 19" x 5-3/16" x 6-1/2" and features a "DEC Blue" finish.
