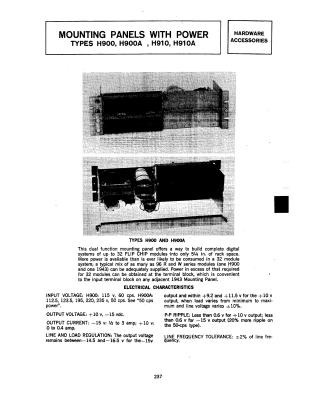

Mounting Panels With Power

This document provides technical specifications and ordering information for dual-function mounting panels designed to house digital FLIP CHIP modules.

Key details include:

• Purpose: These panels provide both the mechanical housing and the electrical power required for digital systems, accommodating up to 32 modules in 5 1/4 inches of rack space.
• H900/H900A Series: Designed for 32 modules with specific input voltage requirements (H900 for 115V/60cps; H900A for various 50cps inputs). They offer +10V and -15V outputs.
• H910/H910A Series: Similar to the H900 series but built from four H803 connector blocks, allowing for the inclusion of an optional H701 power supply.
• Options and Accessories: The document outlines ordering codes for connector types (wire-wrap vs. solder fork) and optional prewired power. Additional hardware accessories mentioned include a hold-down bar for vibration environments and a bus strip for wiring simplification.
• Mechanical Specs: All models share standard dimensions (19" width, 5 3/16" height, 6 3/4" depth) and a "Chromicoat" finish.
