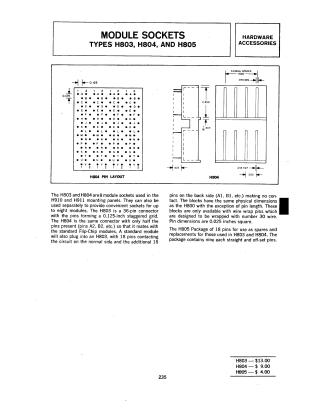

Module Sockets

This document describes the H803, H804, and H805 module sockets used with H910 and H911 mounting panels or as standalone connectors.

• H803: A 36-pin connector featuring a 0.125-inch staggered pin grid.
• H804: A version of the H803 connector featuring only 18 pins (A2, B2, etc.) to mate specifically with standard Flip-Chip modules. Both H803 and H804 are designed with wire-wrap pins (0.025 inches square) compatible with number 30 wire.
• H805: A replacement kit containing 18 spare pins (nine straight and nine off-set) for the H803 and H804 sockets.
