Connector Blocks Types H800-W, H800-F

This document provides specifications and purchasing information for H800 series connector blocks and their corresponding replacement contacts. Key details include:

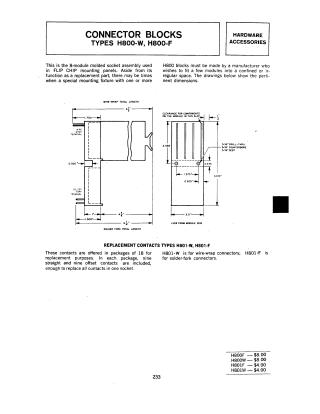

• Connector Blocks (H800-W, H800-F): These are 8-module molded socket assemblies designed for use in "FLIP CHIP" mounting panels. They are suitable for custom mounting fixtures in confined spaces. The document includes dimensioned technical drawings to assist with installation and spacing.
• Replacement Contacts (H801-W, H801-F): Replacement contact kits are available, with each package containing 18 contacts (nine straight and nine offset), which is sufficient to replace all contacts in a single socket. The H801-W is intended for wire-wrap connectors, while the H801-F is designed for solder-fork connectors.
• Pricing: A price list is included for all four items (H800F, H800W, H801F, and H801W).
