Terminator G715

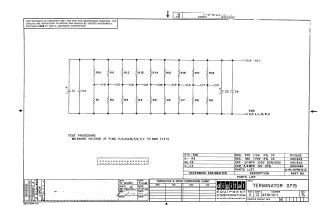

This document is a technical schematic for the Digital Equipment Corporation "Terminator G715" printed circuit board, dated 1968. The schematic illustrates a circuit design featuring a series of resistors (R1–R18) and capacitors (C1–C4) used for termination purposes, connected to a +10V power source and common ground pins. The document includes a parts list specifying the values and part numbers for the components used, along with a brief test procedure instruction to measure the voltage at specified pins relative to ground.
