Dectape Jumper Module G705

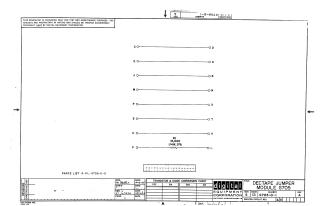

This document is a technical schematic for the Digital Equipment Corporation "Dectape Jumper Module G705." It displays the electrical connections for the module, which consists of a series of straight-through pin-to-pin jumpers (C-D, E-H, J-K, M-N, P-R, S-T, U-V) and a single 15,000-ohm, 1/4-watt, 5% resistor connected between pins F and L. The document is intended for test and maintenance purposes.
