Memory Selector Matrix G604

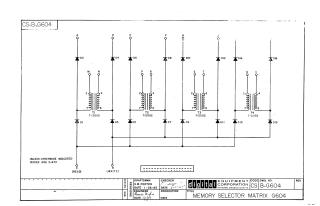

This document is an electrical engineering schematic for a Memory Selector Matrix (model G604), produced by Digital Equipment Corporation in 1965. The circuit consists of four pulse transformers (T-2052) configured in a matrix controlled by "Read" and "Write" inputs, using a series of diodes (D-670) to manage signal flow across terminals A through V.
