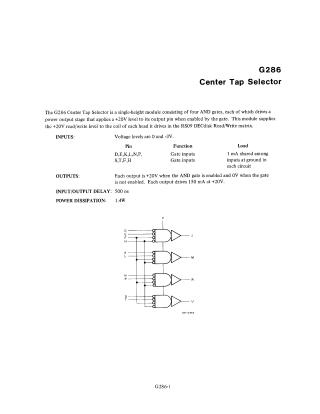

G286 Center Tap Selector

Summary: The G286 Center Tap Selector is a single-height hardware module designed for the RS09 DECdisk Read/Write matrix. It utilizes four AND gates, each paired with a power output stage, to provide a +20V read/write signal to drive head coils. The module operates with input voltage levels of 0V and -3V, produces a 20V output when enabled (0V when disabled), has an input/output delay of 500 ns, and features a power dissipation of 1.4W.
