Memory Selector G222

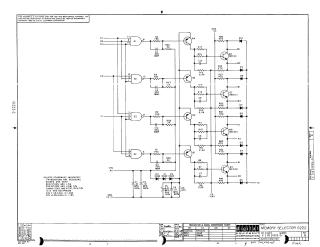

This document contains technical engineering diagrams for the Digital Equipment Corporation Memory Selector G222. The first page provides a detailed electronic schematic showing the logic gates (DEC74H10N), transistors (DEC6534C), diodes (DEC672), and associated resistor/capacitor networks that facilitate the conversion of signals. The second page provides a board layout diagram, illustrating the physical placement of these components on the circuit board.
