100 Ohm Terminator G700

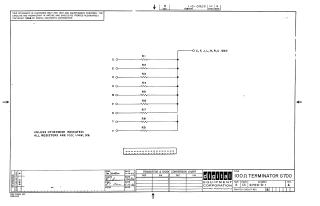

This document is a technical schematic for the Digital Equipment Corporation 100-ohm terminator module (model G700). It details a circuit consisting of nine parallel 100-ohm, 1/4W resistors (R1 through R9). Each resistor connects a specific input pin (D, E, H, K, M, P, S, T, and V) to a common output/ground terminal (shared by pins C, F, J, L, N, R, and U). The schematic is dated November 1966.
