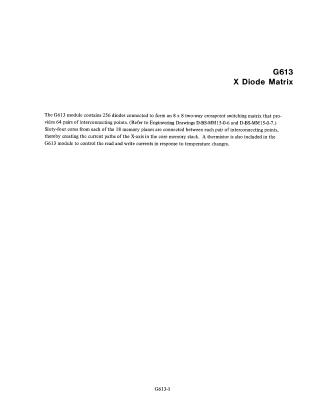

G613 X Diode Matrix

The G613 module is an 8 x 8 two-way crosspoint switching matrix comprised of 256 diodes that provide 64 interconnecting points. It functions by connecting 64 cores from each of the 18 memory planes to these points, establishing current paths for the X-axis in the core memory stack. Additionally, the module includes a thermistor to regulate read and write currents based on temperature fluctuations.
