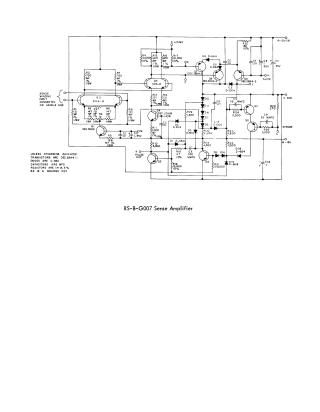

Rs-b-g007 Sense Amplifier

Summary: This document provides a detailed electronic schematic for an RS-B-G007 Sense Amplifier. The circuit incorporates a variety of components, including several transistors (such as the SDA-6, SDA-8, DEC 2894-3, and DEC 3009), numerous diodes (D-664 and D-668), resistors with specific tolerance ratings, and various capacitors. The circuit includes inputs for sense windings and a strobe, as well as multiple power supply rails (A+10V, C GND, and B-15V). Technical notes specify that unless otherwise indicated, transistors are DEC 2894-1, diodes are D-662, capacitors are in microfarads (MFD), resistors are 1/4W, 5%, and R4 is a Bourns potentiometer.
