10 Mc Pulse Amplifier B602

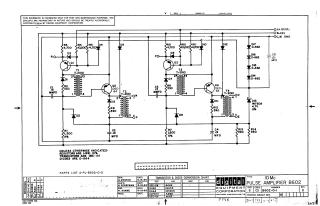

Summary: This document is a technical schematic for a 10 Mc Pulse Amplifier (Model B602) designed by the Digital Equipment Corporation in 1964. The circuit design features two identical stages, each utilizing transistors (Q1/Q2 and Q3/Q4) and pulse transformers (T1/T2 and T3/T4) to amplify signals. The schematic details the arrangement of resistors, capacitors, and diodes (D1-D17) required for the circuit's operation, operating on +10V and -15V power rails. It also includes a conversion chart for transistor and diode types and revision history logs.
