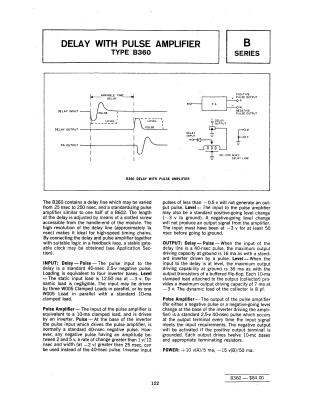

Delay With Pulse Amplifier Type B360

Summary The B360 is a B-series module featuring a variable delay line (25 to 250 nsec) and a standardizing pulse amplifier. It is designed for high-speed timing applications, allowing for the creation of stable gateable clocks when used in a feedback loop.

Key technical specifications and features include:

• Input Requirements: The unit accepts standard 40-nsec negative pulses; pulse inputs must be at least 25 nsec wide, and level inputs must be at -3 V for at least 50 nsec before transitioning to ground.
• Output Capabilities: The delay line provides a 40-nsec output, with maximum driving capabilities ranging from 16 ma to 36 ma at ground, depending on the configuration.
• Pulse Amplifier: This section produces a standard 2.5-V, 40-nsec pulse output every time the input requirements are met, capable of driving twelve 10-ma bases.
• Power: Requires +10 V at 5 ma and -15 V at 50 ma.
