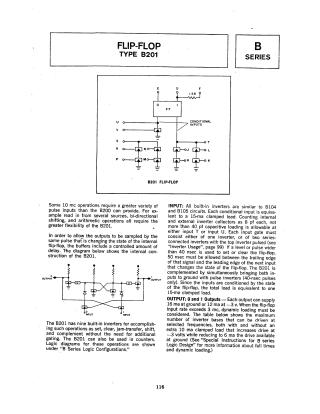

Flip-Flop Type B201

Summary This document provides the technical specifications and operational details for the B201 Flip-Flop, a component designed for 10 mc operations requiring complex pulse inputs such as shifting, arithmetic, and jam-transfer.

Key details include:

• Design: The B201 features nine built-in inverters and controlled internal delay to allow for simultaneous output sampling.
• Inputs: The device utilizes gated inputs that function similarly to B104 and B105 circuits. It includes specific requirements for pulse width and timing to ensure proper state changes.
• Outputs: Each output can supply 16 ma at ground or 12 ma at −3v. A separate indicator output (pin F) is available for driving indicators via a connector board.
• Loading and Frequency: The document provides a table outlining the relationship between flip-flop input frequency and the maximum allowable inverter base inputs to manage dynamic loading.
• Power Requirements: The unit operates at +10(A)/5 ma and −15(B)/63 ma.
