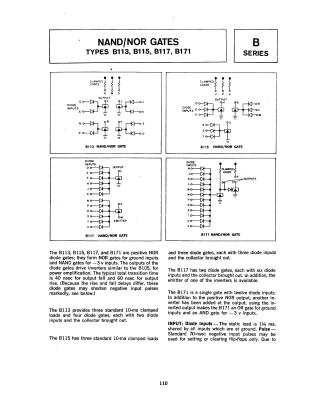

Nand/Nor Gates

Summary This document provides technical specifications and operational descriptions for the "B Series" positive NOR logic gates (B113, B115, B117, and B171). These modules utilize diode inputs and inverter outputs to perform NOR operations for ground inputs and NAND operations for -3V inputs.

Key details include:

• Configurations: The modules vary by number of diode inputs and available output configurations (e.g., the B117 includes an emitter connection, and the B171 features twelve diode inputs).
• Performance: Typical transition times are 40 nsec for output fall and 60 nsec for output rise.
• Operating Parameters: The document outlines specific requirements for input pulse lengths (100 nsec recommended), power consumption ratings for each model, and output drive capabilities (16 ma at ground).
• Clamped Loads: Each standard clamped load draws 10 ma from any circuit that pulls it to ground.
• Pricing: The document concludes with a price list for each module type, ranging from $14.00 to $23.00.
