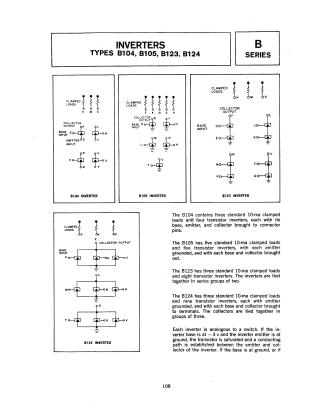

Inverters Types B104, B105, B123, B124

This document provides technical specifications and circuit configurations for the B-series inverter modules (Types B104, B105, B123, and B124). These modules act as electronic switches where the inverter saturates and conducts when the base is at -3V and the emitter is at ground.

Key details include:

• Configuration: The document outlines the specific number of 10-ma clamped loads and transistor inverters for each model, noting that some models feature emitters grounded or collectors tied in series.

• Operating Characteristics:

  • Input: The inverters are designed for standard 40-nsec pulses up to 10 mc. They feature a static input load of 1 ma and can reject 0.5V of noise.
  • Output: The maximum output driving capability is 16 ma. Clamped loads provide 7 ma at -3V.
  • Performance: Propagation delay for lightly loaded inverters is approximately 12 nsec.

• Power Requirements: The document lists the specific voltage and current requirements (+10V and -15V) for each model.

• Pricing: The document concludes with the unit pricing for each model, ranging from $17.00 to $31.00.
