10-Bit Analog-To-Digital Converter

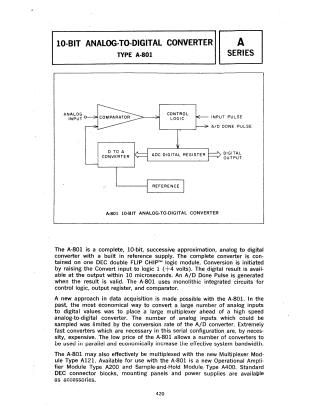

This document provides a technical overview and specifications for the Type A-801, a 10-bit successive approximation analog-to-digital converter housed on a single DEC double FLIP CHIP module. The device features an internal reference, performs conversions in under 10 microseconds, and outputs an "A/D Done" pulse when the digital result is valid.

Designed for efficient data acquisition, the A-801 is intended to be used in parallel configurations to increase system bandwidth cost-effectively. It is compatible with auxiliary DEC modules, including the A121 Multiplexer, A200 Operational Amplifier, and A400 Sample-and-Hold modules. The technical specifications detail a 100 kHz conversion rate, 1000 ohms input impedance, parallel binary output format, and an operating temperature range of 0°C to 50°C.
